Filter Press

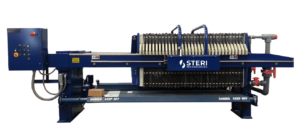

Steri Filter Press

High Capacity Dewatering Solution

The Steri Filter Press is the ideal option for dewatering operations requiring higher capacity. It provides cutting-edge automation features, including fully automatic plate shifting, cloth washing, and a comprehensive range of additional slurry processing and cake handling systems. This Filter Press integrates durable ASTM-A36 steel construction, precise engineering, user-friendly operation, and a diverse array of features to address even the most challenging dewatering issues.

Turn-Key Skids

Standard system package includes controls, hydraulics, and piping

Flexible Sizing

Filter capacity can be easily adjusted by changing the effective volume of the filter pack

Reduce Waste Handling

Produces a drier cake through mechanical compaction

Cost-Effective

Cost-effective solution for producing high solids filter cake

Pilot Scale Filters

Steri provides a wide range of rental Filter Press systems tailored to meet your unique requirements. These rental systems are designed for simple installation and safe use, available in various filter types, sizes, and construction materials for maximum adaptability. We offer portable pilot units for on-site testing, allowing for easy access and efficient operation. This customer-centric solution delivers concrete outcomes by determining the most effective feed pressures, fill times, filter media, and sludge conditioning.

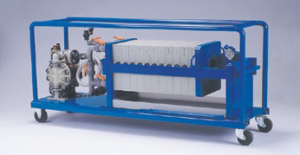

Steri Pilot Filter Press

Contact Us for Rental Filter Availability
Click Here

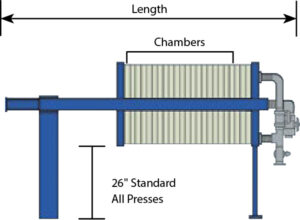

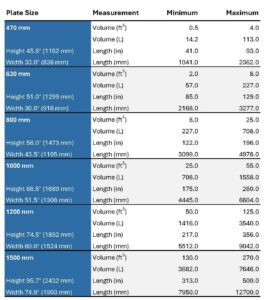

Steri Filter Press SpecsSteri Filter Press Diagram

Filter Press Features:

  • Full range of capacities: 250 mm to 2.0 m x 2.0 m
  • Standard plate packs: Non-Gasketed Plates, Gasketed Plates, Diaphragm Squeeze Plates, Plate and Frame
  • Closure Systems: Manual, Automatic Closure (Air/ Hydraulic), Automatic Closure (Electric/Hydraulic)
  • Control Systems: Standard Control Panel, Automatic Pump Control System, PLC Control
  • Standard Manifolds: Air Blow Down Manifold, Double End Feed Manifold, Core Blow Down Manifold, Cake Wash Manifold, Precoat Manifold (other configurations available — consult factory)

Filter Press Options:

  • Low and high pressure: 100 psi (7 bar), 225 psi (16 bar), higher pressure available — consult factory
  • Stainless Steel Sidebar Covers
  • Expansion options available for future capacity
  • Plate Shifting: Air Operated Semi-Auto Plate Shifter, Automatic Pry Shifter, Automatic Pry Shifter and Bump, Automatic Pry Shifter, Bump and Weigh (ACDDS), Multi-Plate Pull
  • Automatic Cloth Washing
  • Material handling: Filter Cake Dumpster, Extended Legs and Chute, Platform, Drum Disposal System, Platform, Roll-off Container System
  • Cake Conveyors
  • Drip Trays: Manual, Automatic
  • Spread Leg Design
  • Safety: Splash Curtain, Safety Guard, Safety Light Curtains, Deadman Control Button, Safety Tripwire, Hyd. Clamp Pressure/Feed Pump, Interlock, Hyd. Control System/Press, Pressure Interlock, Hyd. Clamp Pressure/Squeeze, System Interlock
